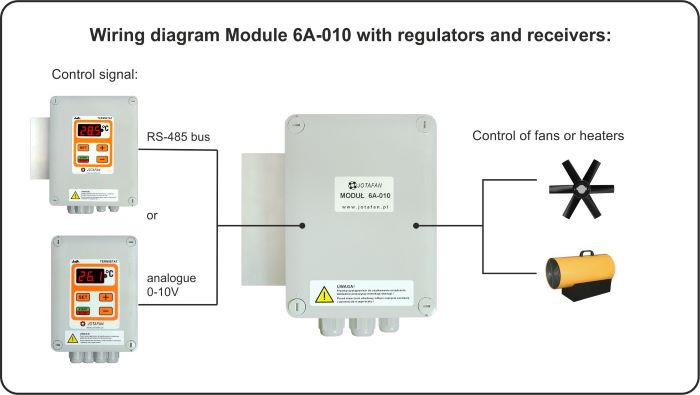

Module 6A-010 is a device of extension the fluent section with direct power supply of load supplied with 230V, 50Hz (e.g. fans) with power consumption of up to 6A from 0 to 100% of power. This module can be controlled by means of external analogue voltage 0..10V or RS-485 bus.

Thanks to galvanic separation between energy electronic circuits and input modules there is a possibility of interoperation of several modules supplied with different phases of voltage. This solution provides regular load of mains supply and partial ventilation in case of power supply failure of one of phases.

This device is equipped with an anti-disturbances filter and surge protectors that are mounted directly on the printed circuit board. The module can be equipped with an alarm relay (option) activated in case of incorrect work of the device, power supply failure and other emergencies.

Module 6A-010 enables the adjustment of sensitivity thresholds (voltage below which the control is turned off or voltage above which the control is turned on to full power) as well as calibration of control characteristics by means of defining the level of output power for 1% or 99% of control process. Configuration is made by means of built-in micro-switches.
