Module 010-010
Module 010-010 is an electronic system by means of which it is possible to adjust a standard FLV 0..10V signal to load with an active control output.
The module is supplied with DC voltage from 12V to 24V. It is also pre-calibrated so that the control signal was processed 1:1. Additionally, in order to eliminate any disturbances that might influence on the input signal, there was used in the module a passive input low pass filter.

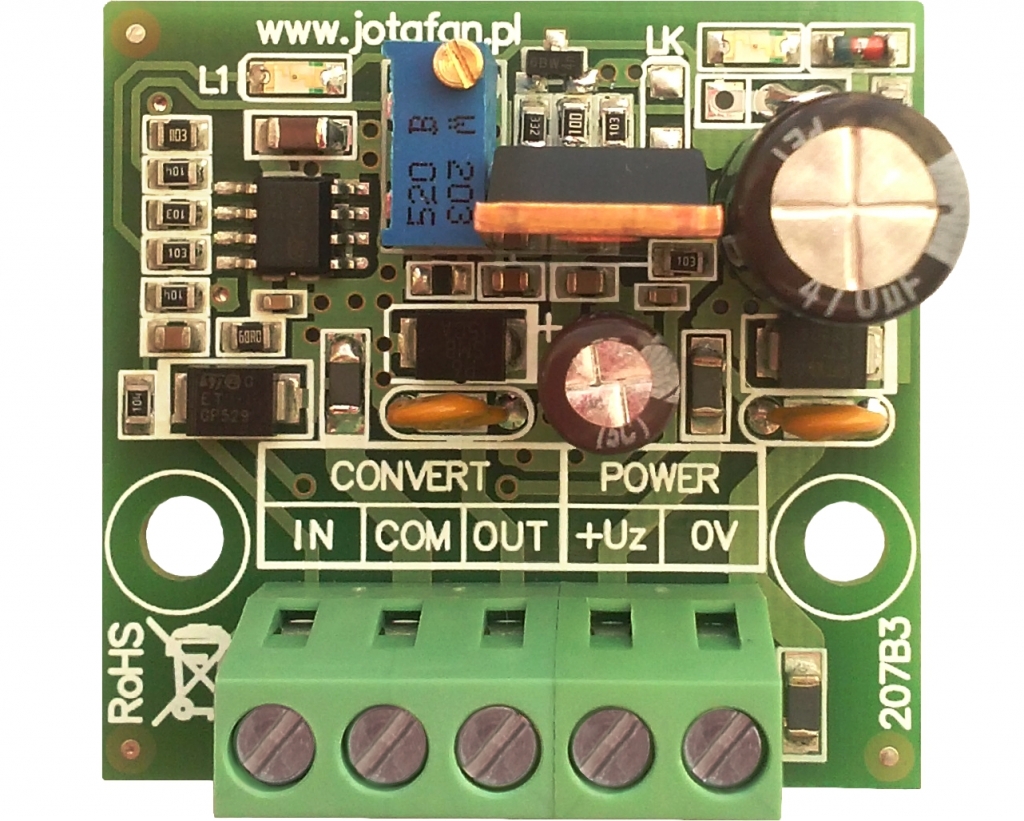

The module status is indicated by two LED diodes on the printed circuit board. The module is equipped with surge, overload, short-circuit and anti-disturbances protection. This module is delivered as a mounted board with screw terminals, without a housing. It has got two mounting holes so that it could be mounted in a housing.
Technical Data:Supply voltage | 12..24 V DC |
Input resistance (between IN and COM terminals) | about 200 kΩ |
Time constant of an input filter | about 0,5 s |
Input voltage (IN terminal, positive polarity towards COM terminal) | 0 ÷ 10 V |
Maximum current of an OUT terminal (with voltage 10V) | 70 mA |
Temperature in immediate vicinity of the controller | 0 ÷ 40 °C |
Board dimensions (length x width x height) | 41,5 x 40,5 x 20 mm |
Diameter of mounting holes | 4 mm |
Distance between mounting holes centres | 33,5 mm |
Module weight | 15 g |
